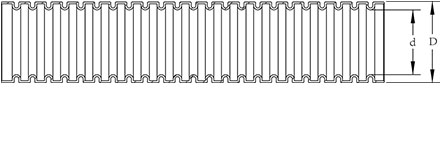

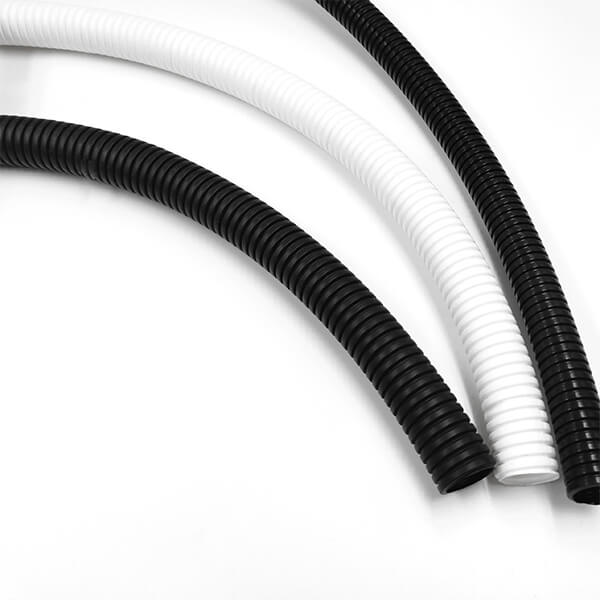

| Nylon Corrugated Tubings | |||||
| Cat. No. | Size | Curved Radius (mm) | Std.pkg (Mts/Roll) | ||
| Inch | I.D.(mm) | O.D.(mm) | |||
| AD-10 | 1/4 | 6.5 | 10.0 | 10 | 100 |
| AD13 | 5/16 | 10.0 | 13.0 | 10 | 100 |
| AD15.8 | 3/8 | 12.0 | 15.8 | 10 | 100 |
| AD18.5 | 14.3 | 18.5 | 10 | 100 | |
| AD21.2 | 1/2 | 17.0 | 21.2 | 12.5 | 100 |
| AD25 | 20.0 | 25.0 | 12.5 | 50 | |
| AD28.5 | 3/4 | 23.0 | 28.5 | 10 | 50 |
| AD34.5 | 1 | 29.0 | 34.5 | 10 | 50 |
| AD42.5 | 1 1/4 | 36.0 | 42.5 | 13 | 50 |
| AD54.5 | 2 | 48.0 | 54.5 | 13 | 25 |
| Diference and apllication of PA,,PP,PE , | |||||||
| Product | PA | PP | PE | ||||
| Product material: | Nylon PA66 | Polypropylene | Polyethylene | ||||
| Working temperature | -40℃~125℃; in state instaneous heat resistance up to 150℃ | -30℃~100℃; in state instaneous heat resistance up to 140℃ | -30℃~100℃; in state instaneous heat resistance up to 120℃ | ||||
| Flame retardant | Not flame retardant | Flame retardant and Not flame retardant | Flame retardant and Not flame retardant | ||||
| Sturcture | Both internal and external waves | ||||||
| Features | Good flexibility, anti-twist, good bending performance; acid resistance, lubricating oil, cooling liquid, etc., bright surface gloss, friction resistance | Good flexibility, surface gloss, chemical resistance | Good flexibility, surface gloss, chemical resistance | ||||
| Carrying Capacity | Can withstand the heavy pressure of the foot, not broken, not deformed, can be recovered quickly, and itself without any damage | Harder than PE bellows and softer than PA | The softer one, it can be squashed by hand | ||||
| Application field | Machinery manufacturing, electrical insulation protection, lighting equipment, automobile manufacturing, aviation equipment, subway, train, automation control and other industries | It is mainly used for automobile wiring, and can also be used for machine tool machinery, automatic instruments, motors and motors, protecting cables and wires from external forces and insulation; | It can be used in machine tool machinery, electrical equipment, food machinery, automation equipment | ||||
FAQ
1.Question: can i print our own logo on product packing ?
Answer: Of course.we are a professional manufacturing with over 10 years of OEM exprience,Customer's LOGO can be produced by laser, embossing, printing, etc.
2.Question: How long is the working life of cable gland?
Answer:More than 10 years undaer normal environment.
3.Question: what is the lead time?
Answer: Standard goods can be shipped out within 3-7 business days.
4.Question: If we buy your product and find quality problems, how to solve it？
Answer: If quality problems are caused by us instead of external reasons, we will compensate each item to the customer.
5.Question: Can be accept OEM color & packing of flexible corrguated pipe？
Answer: Yes,OEM,ODM can be accepted.
