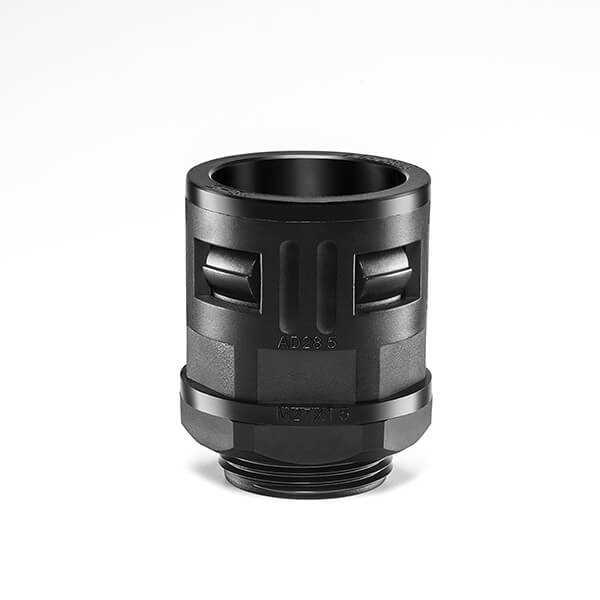

产品特性

尼龙快速接头不仅保留了迫紧螺帽拉力高的优点,也提供安装的快速性和便捷性,产品的设计可以让任何浪管轻松的滑入,并且透过迫紧螺帽将浪管夹紧防止脱落。这个动作配合高韧性的尼龙浪管系列。

产品材质

采用UL认可之尼龙PA66制成防火等级UL94V-2,可定制UL认可防火94V-0尼龙PA66材料。

颜色

黑色,灰色,其他颜色可定制。

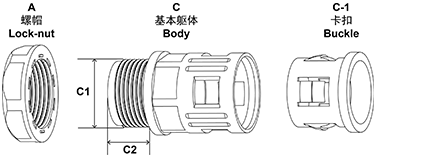

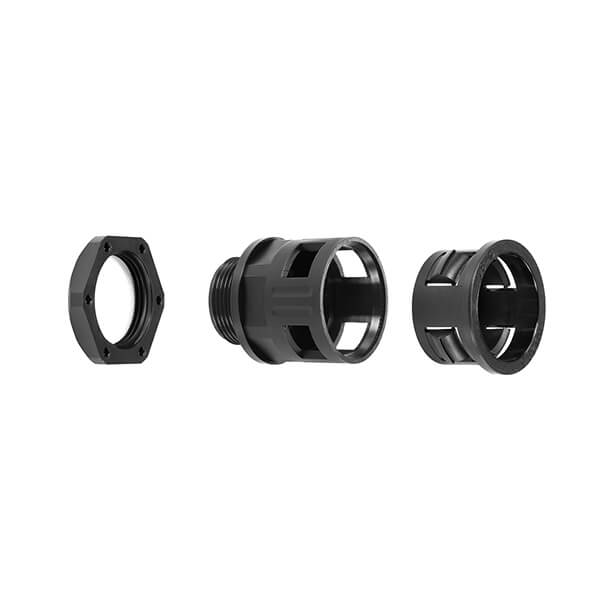

分解图


技术参数

Nylon Quick Connector
公制牙
螺牙规格规格Matching Pipc螺纹外径螺纹长度包装
M12*1.5M12-AD10.0AD10.01/4"121050
M12-AD13.0AD13.05/16"1210.50
M16*1.5M16-AD13.0AD13..05/16"161050
M16-AD15.8AD15.83/8"161050
M18*1.5M18-AD13.0AD13.05/16"1812.550
M18-AD15.8AD15.83/8"1812.550
M20*1.5M20-AD15.8AD15.83/8"201050
M20-AD18.5AD18.53/8"201550
M20-AD21.2AD21.21/2"201050
M22*1.5M22-AD18.5AD18.53/8"221050
M24*1.5M24-AD21.2AD21.21/2"241350
M25*1.5M25-AD21.2AD21.21/2"251350
M25-AD25AD253/4"251350
M25-AD28.5AD28.53/4"251350
M27*1.5M27-AD28.5AD28.53/4"271350
M32*1.5M32-AD28.5AD28.53/4"321350
M32-AD34.5AD34.51"321450
M36*1.5M36-AD34.5AD34.51"361450
M40*1.5M40-AD34.5AD34.51"401520
M40-AD42.5AD42.51 1/4"401512
M48*1.5M48-AD42.5AD42.51 1/4"481510
M50*1.5M50-AD54.5AD54.52"501610
M63*1.5M63-AD54.5AD54.52"631610
德制牙
螺牙规格规格Matching Pipc螺纹外径螺纹长度包装
PG7PG7-AD10.0AD10.01/4"12.58.550
PG9PG9-AD13.0AD13.05/16"15.21050
PG11PG11-AD15.8AD15.83/8"18.612.550
PG13.5PG13.5-AD15.8AD15.83/8"20.412.550
PG13.5-AD18.5AD18.53/8"20.412.550
PG16PG16-AD21.2AD21.21/2"22.51350
PG21PG21-AD25.0AD25.03/4"28.31350
PG21-AD28.5AD28.53/4"28.31320
PG29PG29-AD34.5AD34.51"371410
PG36PG36-AD42.5AD42.51 1/4"471510
PG42PG42-AD42.5AD42.51 1/4"541610
PG48PG48-AD54.5AD54.52"59.31610
英制牙
螺牙规格规格Matching Pipc螺纹外径螺纹长度包装
G(PF)1/4"G(PF)1/4"-AD10.0AD10.01/4"13.18.550
G(PF)3/8"G(PF)3/8"-AD13.0AD13.05/16"16.61050
G(PF)3/8"-AD15.8AD15.83/8"16.612.550
G(PF)1/2"G(PF)1/2"-AD15.8AD15.83/8"20.912.550
G(PF)1/2"-AD18.5AD18.53/8"20.912.550
G(PF)1/2"-AD21.2AD21.21/2"20.91350
G(PF)3/4"G(PF)3/4"-AD21.2AD21.21/2"26.41350
G(PF)3/4"-AD25.0AD25.03/4"26.41350
G(PF)3/4"-AD28.5AD28.53/4"26.41350
G(PF)1"G(PF)1"-AD34.5AD34.51"33.21420
G(PF)1 1/4"G(PF)1 1/4"-AD42.5AD42.51 1/4"41.91510
G(PF)1 1/2"G(PF)1 1/2"-AD42.5AD42.51 1/4"481610
G(PF)2"G(PF)2"-AD54.5AD54.52"601610

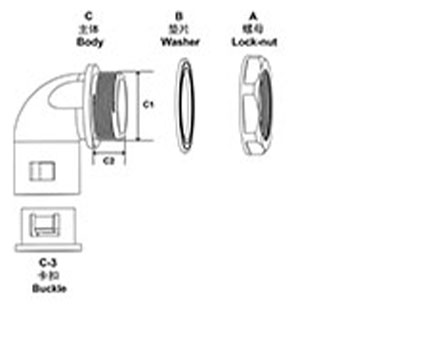

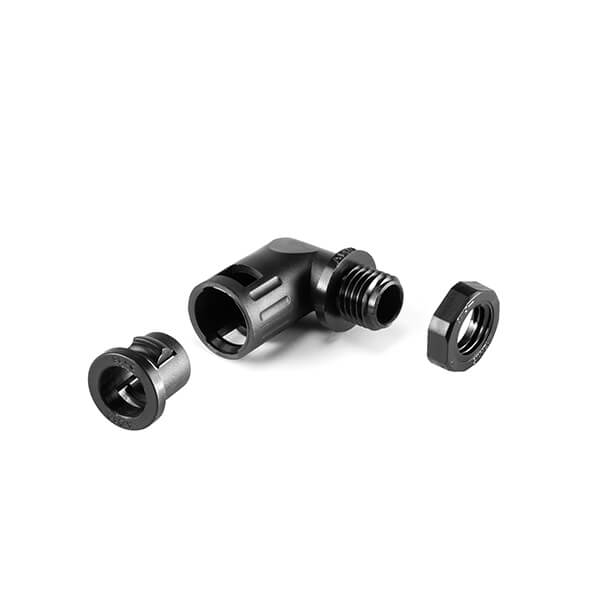

分解图


技术参数

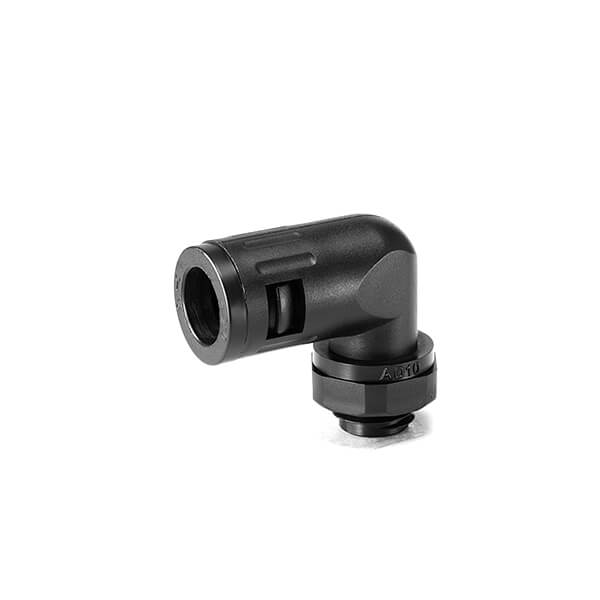

90°Nylon Quick Connector
Metric
螺牙规格规格Matching Pipc螺纹外径螺纹长度包装
M12*1.5M12-AD10.0AD10.01/4"121050
M12-AD13.0AD13.05/16"121050
M16*1.5M16-AD13.0AD13.05/16"161050
M16-AD15.8AD15.83/8"161050
M18*1.5M18-AD13.0AD135/16"1812.550
M18-AD15.8AD15.83/8"1812.550
M20*1.5M20-AD15.8AD15.83/8"201050
M20-AD18.5AD18.53/8"201550
M20-AD21.2AD21.21/2"201050
M22*1.5M22-AD18.5AD18.53/8"221050
M24*1.5M24-AD21.2AD21.21/2"241350
M25*1.5M25-AD21.2AD21.21/2"251350
M25-AD25.0AD25.03/4"251350
M25-AD28.5AD28.53/4"251350
M27*1.5M27-AD28.5AD28.53/4"271350
M32*1.5M32-AD28.5AD28.53/4"321350
M32-AD34.5AD34.51"321450
M36*1.5M36-AD34.5AD34.51"361450
M40*1.5M40-AD34.5AD34.51"401520
M40-AD42.5AD42.51 1/4"401512
M48*1.5M48-AD42.5AD42.51 1/4"481510
M50*1.5M50-AD54.5AD54.52"501610
M63*1.5M63-AD54.5AD54.52"631610
PG
螺牙规格规格Matching Pipc螺纹外径螺纹长度包装
PG7PG7-AD10.0AD10.01/4"12.58.550
PG9PG9-AD13.0AD13.05/16"15.21050
PG11PG11-AD15.8AD15.83/8"18.612.550
 PG13.5-AD18.5AD18.53/8"20.412.550
PG16PG16-AD21.2AD21.21/2"22.51350
PG21PG21-AD25.0AD25.03/4"28.31350
PG21-AD28.5AD28.53/4"28.31350
PG29PG29-AD34.5AD34.51"371420
PG36PG36-AD42.5AD42.51 1/4"471510
PG42PG42-AD42.5AD42.51 1/4"541610
PG48PG48-AD54.5AD54.52"59.31610
G
螺牙规格规格Matching Pipc螺纹外径螺纹长度包装
G(PF)1/4"G(PF)1/4"-AD10.0AD10.01/4"13.18.550
G(PF)3/8"G(PF)3/8"-AD13.0AD13.05/16"16.61050
G(PF)3/8"-AD15.8AD15.83/8"16.612.550
G(PF)1/2"G(PF)1/2"-AD15.8AD15.83/8"20.912.550
G(PF)1/2"-AD18.5AD18.53/8"20.912.550
G(PF)1/2"-AD21.2AD21.21/2"20.91350
G(PF)3/4"G(PF)3/4"-AD21.2AD21.21/2"26.41350
G(PF)3/4"-AD25AD253/4"26.41350
G(PF)3/4"-AD28.5AD28.53/4"26.41350
G(PF)1"G(PF)1"-AD34.5AD34.51"33.21420
G(PF)1 1/4"G(PF)1 1/4"-AD42.5AD42.51 1/4"41.91512
G(PF)1 1/2"G(PF)1 1/2"-AD42.5AD42.51 1/4"481610
G(PF)2"G(PF)2"-AD54.5AD54.52"601610

如何正确选择螺牙类型?

1.首先确定安装面板的孔径,并确定其是否属于攻牙孔。
2.对照技术参数表找到匹配的螺牙型号(如:M、PG、NPT、G螺牙)。
3.如果安装面板没有攻牙孔,那么只需要确定孔径即可。
4.加长款螺纹适用于厚的安装面板。
